ROTOFeed
The Clyde ROTOFeed is a heavy-duty, precision solids feeding and injection system for powders and granular materials, designed to deliver highly accurate, consistently controlled batch or continuous injection directly into a variety of industrial processes.
View Process VideosPrecision Feeding and Injection for Controlled Process Performance
The Clyde ROTOFeed is a heavy-duty, precision solids feeding and injection system for powders and granular materials, designed to deliver highly accurate, consistently controlled batch or continuous injection directly into a variety of industrial processes. It is widely used where reliable feeding of powders or granular materials into pressurised process environments is essential.

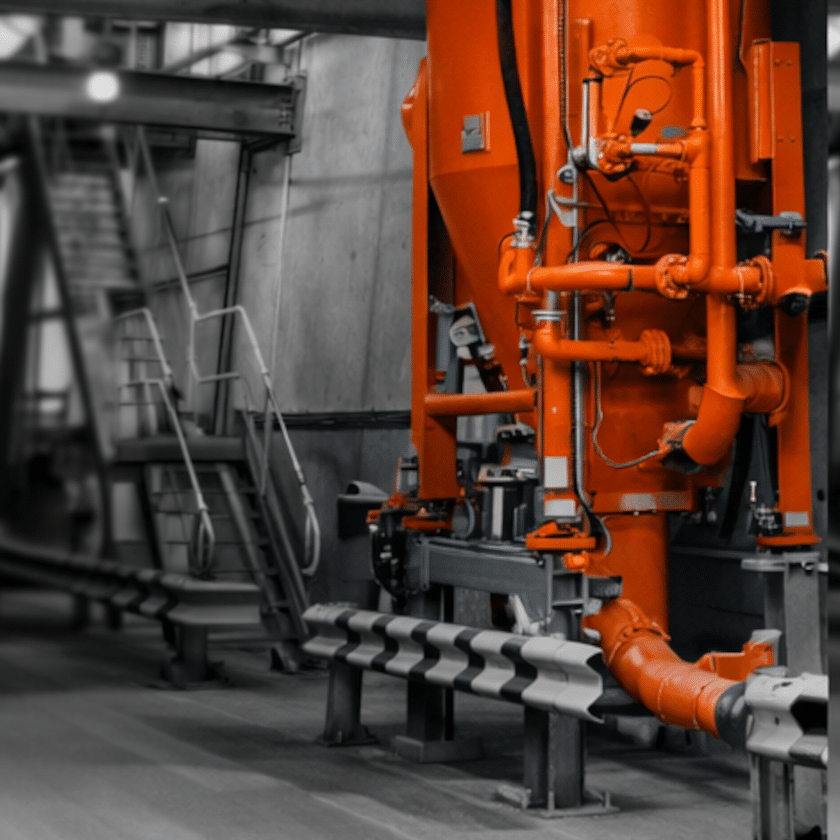

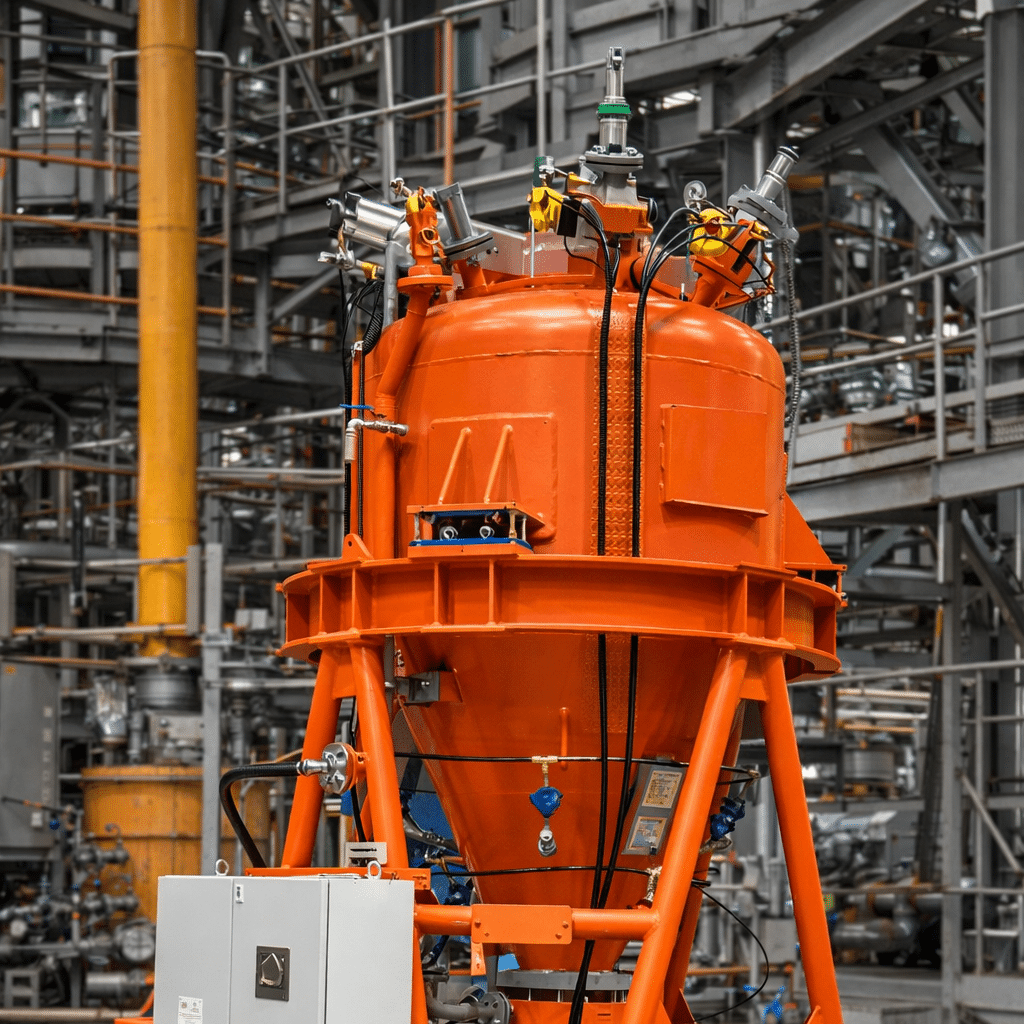

Material is discharged from a dispense vessel through the ROTOFeed unit, where a variable-speed drive controls the injection rate into the downstream injection pipeline. This controlled feeding capability ensures stable process operation and highly repeatable performance.
ROTOFeed technology is particularly suited for applications requiring accurate solids injection into processes such as blast furnaces, power boilers, smelters, and other high-temperature or high-pressure industrial processes.
Our injection technology can also be used for simultaneous multi-point injection.
ROTOFeed systems can inject materials over distances of up to 500 metres and into processes operating at pressures up to 30 barg, depending on application conditions.
Designed for Demanding Process Injection Applications
Process injection involves controlled feeding of solid materials into a live industrial process, often operating under elevated pressure and temperature. Unlike standard pneumatic conveying systems, injection equipment must overcome process backpressure while maintaining stable, continuous and accurate feed rates.
Injection systems can also:
- Overcome process backpressure
- Maintain continuous, stable and accurate feed rates
- Prevent backflow from the process
- Inject against high temperatures and pressures up to 30 barg
- Integrate seamlessly with plant control systems

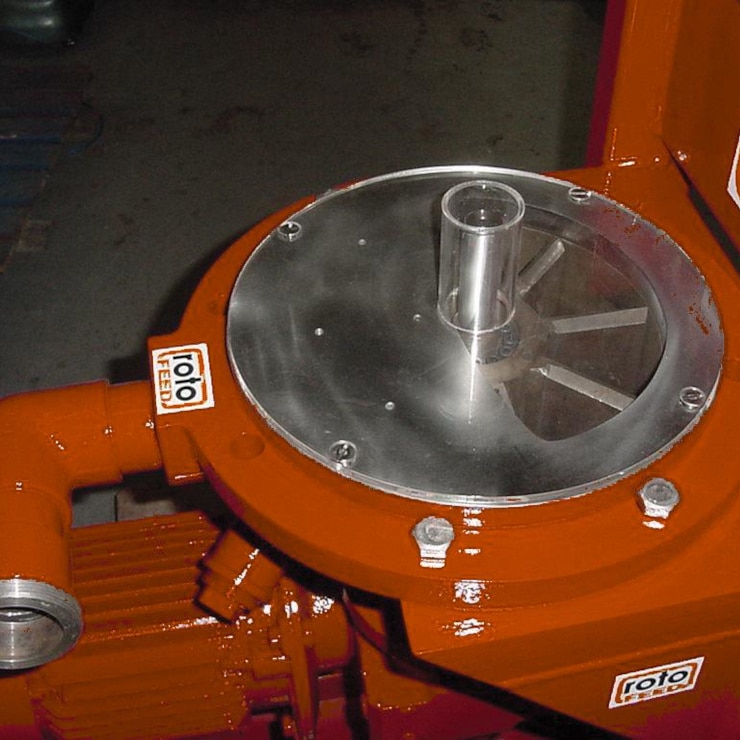

The Clyde ROTOFeed has been specifically engineered to meet these requirements. Its heavy-duty rotor and housing design, combined with robust sealing arrangements and integrated Dome Valve isolation, ensures reliable injection into pressurised industrial processes operating at pressures of up to 30 barg.
Key Performance Capabilities
- Continuous or Batch Injection: Capable of operating in either continuous or batch feeding modes, depending on the process requirements.
- Wide Feed Rate Control: A variable-speed drive provides a 10:1 turndown or ramp-up in injection rate.
- High Injection Accuracy: 0.5–2% accuracy with load cells (gravimetric) or 5–10% volumetric accuracy without weighing.
- Injection into Pressurised Processes: Capable of feeding materials into processes operating at pressures up to 30 barg.
- Heavy Duty Pneumatic Valves: Equipped with Clyde Dome Valve technology for reliable sealing and long life.
Key Features
- Heavy-duty rotor design: Handles fine to semi-coarse materials.
- Integrated Dome Valve isolation: Fast-closing pressure-tight material cut-off.
- Pressure-balanced shaft sealing: Reliable sealing in pressurised processes.
- Heavy-duty gearbox: Long operational life with high reliability.
- ATEX-rated design: Suitable for explosive dust environments.
- Pressure-resistant construction: Designed for demanding industrial processes.
The integrated Dome Valve sealing system provides a reliable bulk material cut-off with a pressure-tight inflatable seal, ensuring safe operation in high-pressure applications.
Typical Applications
The ROTOFeed is commonly used in applications that require controlled injection of powders or fine solids.
Typical uses include:
- Injection of materials into blast furnaces
- Reagent injection into power boilers
- Injection of process additives into smelters
- Controlled dosing of powders into high-temperature industrial processes
- Process injection systems requiring accurate feed regulation
Proven Reliability in Industrial Injection Systems
The Clyde ROTOFeed incorporates Clyde Dome Valve technology, ensuring reliable sealing and dependable operation even under challenging process conditions. The valve system can cut through moving or stationary columns of bulk material, providing reliable isolation and leak-free operation.
With proven heavy-duty construction and robust components, ROTOFeed systems are designed for long operational life and high availability in demanding industrial environments.
Custom Features and Options
The ROTOFeed can be configured to suit a wide range of applications and process conditions.
- Dome Coatings: Electro-nickel plating or polymer coatings available for abrasive or cohesive materials.
- High Temperature Capability: Optional water-cooling for operation up to 700°C.
- Pressure Rating: Standard systems rated up to 7 barg; designs available up to 30 barg.
- Rotor: Replaceable rotor tips, wear-resistant.
Integrated Process Injection Expertise
The Clyde ROTOFeed forms part of Clyde Pneumatic Conveying's wider process injection technology portfolio, which includes specialist systems for reliably injecting materials into pressurised, high-temperature industrial processes.
Our engineering expertise ensures the feeding system integrates seamlessly with the overall injection process, delivering consistent performance, accurate dosing and dependable plant operation.
