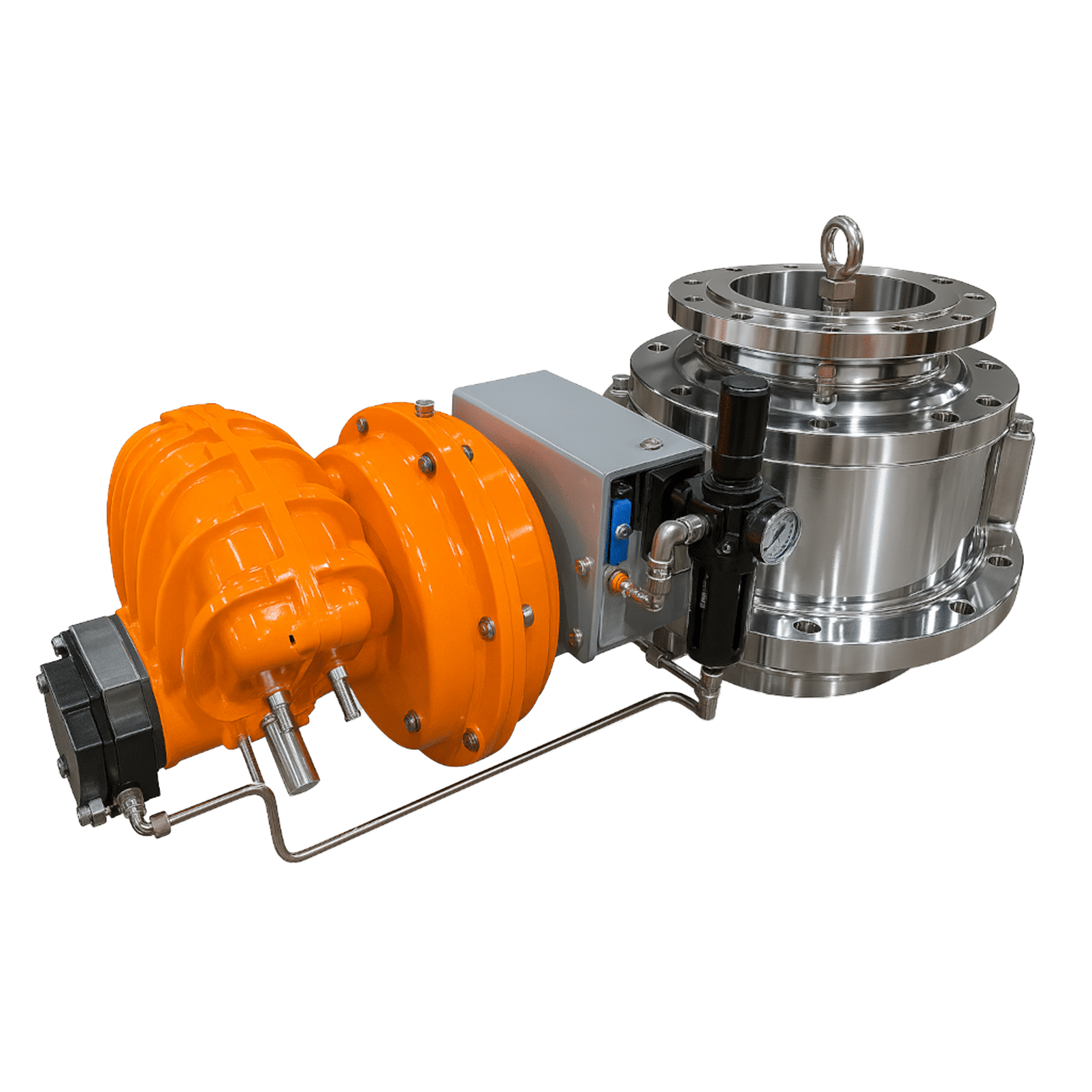

S-Line Dome Valve
The CLYDE S-Line Dome Valve has been specifically developed for the Chemical Industry, where powders and particulate solids frequently present extreme handling challenges.
View Process VideosHigh-Integrity Isolation Valve for Chemical Powder Processing
The CLYDE S-Line Dome Valve has been specifically developed for the Chemical Industry, where powders and particulate solids frequently present extreme handling challenges.
Chemical materials are often fine, abrasive, cohesive, hygroscopic, corrosive or hazardous, which can lead to leakage through conventional valves, excessive wear, system pressure losses and product build-up.
Manufactured entirely in 316 stainless steel, the S-Line Dome Valve provides pressure-tight sealing, superior corrosion resistance and reliable operation with difficult powders, making it one of the most robust isolation valves available for chemical processing plants.
The valve incorporates proven inflatable seal technology, ensuring reliable isolation even in demanding pneumatic conveying and powder-handling systems.
The Chemical Industry Benchmark for Powder Isolation
Handling powders in chemical processing plants requires valves capable of maintaining process containment, reliability and pressure integrity.
Conventional valves such as pinch valves, butterfly valves and slide gate valves often suffer from:
- Leakage of ultra-fine powders
- Rapid wear when handling abrasive materials
- Loss of pressure in conveying systems
- Product build-up and valve blockage
- High maintenance requirements
The CLYDE S-Line Dome Valve has been engineered specifically to overcome these challenges. Its robust design, corrosion-resistant construction and inflatable seal technology ensure reliable isolation of dry particulate solids in demanding chemical processing environments.
Key Features:
- Full bore, unobstructed material flow
- Pressure-tight sealing using inflatable seat technology
- 316 stainless steel construction for corrosion resistance
- Capable of closing through static or moving material
- Fast-acting pneumatic actuation
- Extremely long operational life
- Minimal maintenance requirements
- ATEX options available for hazardous environments
Why Chemical Plants Choose the S-Line Dome Valve
Pressure-Tight Sealing for Ultra-Fine Powders
Many chemical powders, such as titanium dioxide, carbon black, alumina and silica, are extremely fine and prone to leakage through conventional isolation valves.
The S-Line Dome Valve provides:
- 100% pressure-tight sealing using inflatable seat technology
- Zero dust leakage at rest or under operating pressure
- Repeatable sealing performance over millions of cycles
- Reliable pressure retention in pneumatic conveying systems
Cuts Through Static or Moving Material
Chemical powders often settle or accumulate around valve seats.
The S-Line Dome Valve can:
- Shear through settled or packed powders
- Maintain a reliable closure even when material rests on the valve seat
- Operate dependably even during conveying
This eliminates common failure modes experienced with conventional valves.
Exceptional Wear Resistance
Many chemical solids are abrasive, including metal oxides, silica and alumina powders.
The S-Line Dome Valve achieves excellent wear resistance because:
- The dome retracts fully from the material flow path
- The inflatable seal protects the seating surface
- There are no sliding components exposed to abrasion
This results in a dramatically longer service life than conventional mechanical isolation valves.
Low Maintenance and Operating Cost
The valve design is intentionally simple and robust.
Key advantages include:
- Only one primary wear component – the inflatable seal
- Typical seal life is around 1,000,000 cycles
- Valve body and dome capable of 3,000,000+ operating cycles
This simplicity delivers excellent reliability and low lifecycle cost in chemical processing plants.
S-Line Dome Valve vs Conventional Powder Isolation Valves
Enquire| Feature | S-Line Dome Valve | Pinch Valve | Butterfly Valve | Slide Gate Valve |
|---|---|---|---|---|
| Sealing performance | Pressure-tight inflatable seal | Sleeve wear can cause leakage | Poor sealing with fine powders | Leakage common |
| Ability to close through material | Cuts through static or moving material | Cannot close through packed powders | Cannot close through packed powders | Often blocked by product |
| Abrasion resistance | Very high – dome retracts from flow path | Rubber sleeve wears quickly | Disc exposed to abrasion | Sliding surfaces wear quickly |
| Suitability for powder conveying | Excellent – maintains system pressure | Limited | Not suitable for high pressure | Limited |
| Maintenance requirements | Very low | Sleeve replacement required | Seat wear common | Frequent maintenance |
| Lifecycle cost | Lowest overall | High | Moderate | Moderate |

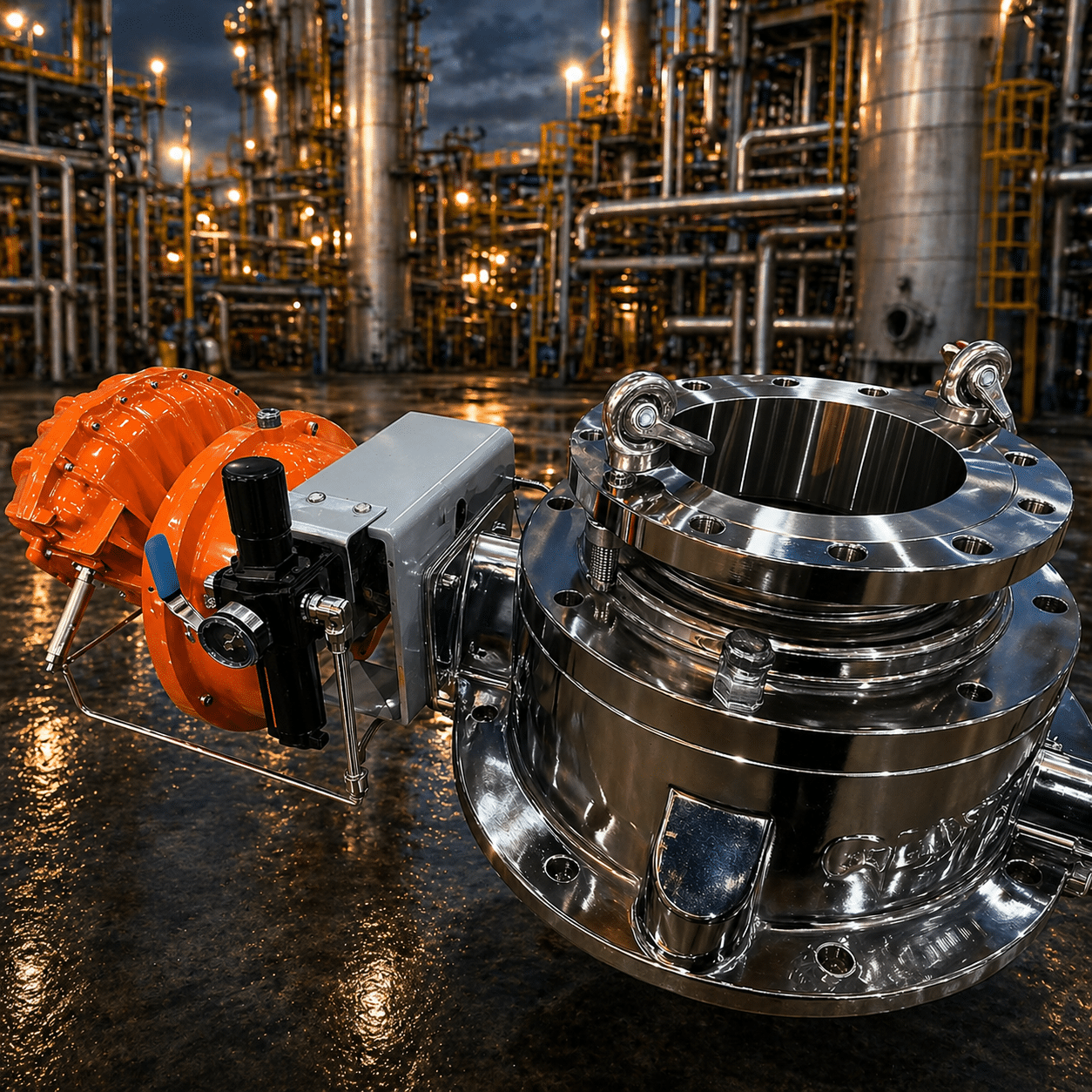

Where the S-Line Dome Valve Is Used in Chemical Plants
The S-Line Dome Valve is installed at critical points throughout chemical processing plants, wherever reliable isolation of dry powders and particulate solids is required.
These installations are commonly found in chemical production, catalyst manufacturing, polymer processing and fertiliser production plants, where reliable powder isolation is essential for safe and efficient plant operation.
- Pneumatic Conveying Systems: Dense-phase conveying line isolation, pump discharge isolation, transfer line isolation between process stages
- Silo & Storage Systems: Silo discharge isolation, hopper discharge systems, powder transfer points
- Reactors & Process Equipment: Reactor feed systems, catalyst handling systems, process vessel discharge isolation
- Thermal Processing Equipment: Dryer discharge systems, calciner or furnace feed systems, high-temperature powder handling
- Hazardous Powder Handling Systems: Toxic powder containment systems, ATEX powder handling plants, dust containment systems
Typical Materials Handled
The CLYDE S-Line Dome Valve is designed to reliably isolate and control a wide range of dry powders commonly found in chemical processing plants, including abrasive, corrosive and ultra-fine particulate solids.
- Minerals & Inorganic Powders: Silica, Calcium Carbonate, Alumina, Titanium Dioxide (TiO₂), Talc, Gypsum, Zeolites, Sodium Carbonate, Sulphur
- Catalysts & Metal Powders: Iron Powder, Copper Powder, Zinc Oxide, Magnesium Powder, Aluminium Powder, Catalyst Fines
- Polymer & Plastic Powders: Polyethene (PE), Polypropylene (PP), Polyvinyl Chloride (PVC), Polystyrene (PS), ABS, Nylon, PMMA
- Fertiliser & Agricultural Chemicals: Potash, Ammonium Phosphate, Micronutrients, Limestone Flour
These powders are widely handled across chemical production, catalyst manufacturing, polymer processing and fertiliser manufacturing plants, where reliable powder isolation and containment are essential.
Why Engineers Specify the S-Line Dome Valve
Engineers in the chemical industry select the CLYDE S-Line Dome Valve when reliability, containment and long-term operating performance are critical.
Key reasons include:
- Pressure-tight sealing with ultra-fine powders
- Reliable closure even with material present
- Exceptional wear resistance with abrasive solids
- Corrosion-resistant stainless steel construction
- Minimal maintenance and low lifecycle cost
These advantages make the S-Line Dome Valve the preferred isolation valve for handling dry particulate solids in modern chemical processing plants.
Operating Capabilities:
- Valve sizes: 50 – 400 mm
- Pressure rating: 7 barg (up to 30 barg optional)
- Temperature range: –20°C to 480°C depending on configuration
- Construction: 316 stainless steel
- Seal life: Approximately 1,000,000 cycles
- Major maintenance interval: Over 3,000,000 cycles
